Back to the basics - Part two The rope trick

EnRoute is capable of so many cool things. One that caught my eye early in the learning process is a feature I call the 'Rope Trick". It is an easy and quick way to create a rope border around a panel. I've used it a ton of times and I never get tired of the magic.

I first created four circles and lined them up by eyeball. It could have been done via the align tools, but this isn't rocket science - it's just a rope. The scale does not matter at this point.

Then I selected all four circles and combined the vectors using the weld tool to form this shape which looks like the cross section of a four stranded rope.

I then defined my plate - in this case 8" x 8" x 1.5" deep.  I drew a circle then used the offset closed contours tool to create two inner rings - all spaced 0.5" apart. The rope contour was sized to suit the big rings. The rope we will create will be centered on the middle circle.


To create the rope mesh I clicked on the revolve to create surface button, then from the drop down menu I selected the extrude contours menu. I selected the mesh function which looks like a globe. Slices and stacks were both increased from 12 to 100.  One more item to add is the number of rotations the rope will make as it goes around the circle. I know from experience that 7 rotations looks good on a circle this size. I encourage you to try different numbers here to see what happens. Then I followed the instructions in the box.   Select contours to be extruded. This is the vector of the cross section of the rope. Then a blue arrow will light up...  click it.  Then the prompt asks you to select the path to follow. This is the center vector circle. Then hit the check mark and PRESTO  - a rope appears! It's PURE MAGIC!


Keep in mind that this is a mesh. Meshes cannot be tool pathed until they are made to be part of the reliefs.

So We do not yet have a relief to combine the mesh to... so I select the inside and outside circle vectors and using the dome tool I create a donut shaped relief. In the front or side view I moved the rope up into the desired position using the up/down keys. Then I select the relief and the rope mesh and opened the add mesh to relief menu. It looks like a pyramid (from the top) and will only light when both a relief and mesh are selected. Then in that menu I selected the merge highest and smoothing (set at medium) commands and hit apply. It doesn't look like anything happened until you select the mesh alone and delete it. But now the rope is part of the relief in perfect detail.




If you had looked close above you would have seen another circle vector just inside the center ring. This I used to create the center dome relief. It was created with a 0.3' high base and a 17 degree dome.


Then I imported one of the bitmaps from my TEXTURE MAGIC collection and sized it to fit the circle, careful to center the pattern, side to side and top to bottom.  I selected both and then used the create bitmap tool with a 0.2" height.


I typed the letter 'A', sized and centered it, then used this vector to create an outline of 0.2" around it. Then I created a flat relief with a height of 0.5"using the letter border. Then using the rope centerline vector I modified the relief using the dome relief tool set to 17 degrees (to match the angle I had used to create the center dome.


After checking the result and nudging it slightly upward I merged it to the center domed background using the merge relief tool. Make sure you select the merge highest command.



Everything was looking pretty good at this point, but it is a bunch of separate files still. I create a zero height relief that was a little bigger than the overall size of the piece. Then I opened the merge relief tool (it looks like two mountains pushed together) select the base relief and then follow the prompts to select the reliefs that need to be merged. Make sure you merge highest or weird things happen! Delete all but the base relief and the letter 'A' vector. Then select the relief and the 'A' vector and using the add to relief command and the bevel relief tool create a beveled 'A'. If you look below you will see I gave the letter a base of 0.1"  This means the side of the 'A' (before the bevel) is 0.1" tall.


Now the relief is done, but before we tool path the file it needs to be aligned with the bottom of the material.



Once the relief is aligned to the bottom I stretch it a little to make best use of the material by simply grabbing the top node and stretching it up/ Leave the top of the relief just slightly lower than the top. Now the file is complete and ready to tool path.


Just like that you have a fairly complex file ready to go. At first it seems like a lot of work, but with a little practice (and repetition it really isn't all that hard.  And with the steps, tool and commands learned in this project many other cool things are suddenly possible.

Stay tuned and I'll be showing you more!

-dan

Friday, April 22, 2011

More wonderful story telling!

We are now on our last day at Disneyland. In the last six days we crisscrossed the parks many times, sampling all the rides and just plain soaking in the wonderful experience they provide. I've studied everything as best I could, recorded more than 500 images, mostly of the signs. We've visited many times before, but each time it is like looking at it with fresh eyes for as my own experience grows and directions change I see things in new ways.
One of my favorite areas in California Adventure is 'Condor Flats', the desert airport area in front of the attraction 'California Soaring'. The theme work is amazing in all directions. One of the features is a rocket motor test facility. A giant rocket engine is suspended on an I-beam rig. It shoots water vapor when it's hot outside, much to the delight of guests.

To one side is a drink stand, selling Coca Cola products. There is no other drink stand like it - ANYWHERE! There are two giant compressors, lots of strange pipes, valves, condensers and contraptions to make it all believable. I can only imagine what it might have cost to make... and I suspect the profits of the drinks sold there would take a very long time to pay it off. But the whole mighty contraption is a wonderful sign for the larger areas and attraction. It tells the story in an awesome fashion. Take it away and the area would become very ordinary and unremarkable - even forgettable in a hurry! This is the Disney difference.


While these types of large budgets may be very hard to find or justify in the real world, I firmly believe we should try. I know I will continue to do my best to build and become become known for these kinds of memorable signs and structures in the future. And although they might be considered expensive, compared to 'ordinary', imagine the landmarks we will create. Imagine how well they will work for our customers!

-dan

Thursday, April 21, 2011

Learning from the best in the business...

My wife and I enjoy business trips of a different kind than most folks. Each year we do our best to spend a week or two in a Disney theme park - somewhere in the world. (there are parks in Florida, California, Tokyo, Paris and Hong Kong).  Now I fully realize that this wouldn't be everyone's cup of tea, but the fact is that the Imagineers at Disney are the very best in the world at what they do. They have taken the art of using signs and entire structures to tell their stories and create an immersive experience. I strongly believe every sign maker and designer should invest the time to go and witness this awesome work first hand.

This past week I have taken more than five hundred pictures of the signs alone in the California parks. It is not my intention to copy anything I see, but rather to use the ideas I see as inspiration for future projects.  I of course look at everything with great interest to discover how they might have done it, and to think about how I might do it differently if I had the chance.  The pictures I show today in this post is NOT work we did in our shop. It was done by the talented folks at Disney Imagineering or someone they contracted.

One of my favorite places in the park is a small restaurant in Fantasyland. It's been there since the mid 80's. I can't remember if the signs have been redone lately but they stood out in my mind this time. I suspect master pieces were hand carved and then molds taken and individual signs cast from that. But in looking at them I believe they could also easily have been done with a CNC router.


If I were doing them now I would do them in one of two ways...   Rough, slightly oversize files could quickly be built in EnRoute and then routed on my MultiCam. I would use 30 lb Precision BOard HDU of course. These would then be carved by hand to add the last bit of detail.  The CNC would take the grunt work out of the task and speed things up immeasurably.The second method if multiple copies were needed would be to do thing similarly, but then have the final files created via a scan and then route as many copies as you needed. This would also be very fast.  Or you could meticulously build the files but It would take some time to get the real hand crafted look.


 What I love about the work is how the signs lend seamlessly into the architecture. They help tell the story in an entertaining fashion.




In seeing all the incredible work these last days it has filled my idea banks once more and inspired me to start in on some cool projects when I return to my shop next week. I would recommend the same for anyone in a creative slump. This kind of work will fit into the real world as well and work just as hard for your customers. The trip to the warm California sunshine has been great! Janis & I have had a blast ... and we got to write off the expenses too!

-dan

Tuesday, April 19, 2011

Back to basics - part one

As I write this blog, I sometimes forget just how much I struggled as I learned this program called EnRoute. Back then I was new to vectors too as I had never owned any kind of plotter or router to that point. I remember struggling through the manual and not having much luck - no matter how hard I tried. But believe me - if I can get it, just about anyone can. Computer literate is something I cannot claim rightfully but I have found through my teaching that sometimes the way I explain things makes sense to those who think like me. Forgive me if I don't call he buttons and controls by their rightful name. I've never read the manual as of yet, but rather learned by simply doing.

Let's start with a relatively simple file...  a wood grained panel with a raised border and a beveled letter with a second bitmap on it alone.  Perhaps not that simple... but if you get this much more is suddenly possible. Here we go...

I created a 6" x 6" x 1" thick plate. This represents the size of material I will route my final piece from. Inside this box I created vectors of a box and the small letter 'a'. I then created an outline around the 'a' with a value of 0.2". This was all done in EnRoute using the draw tools.  It could have been just as easily created in Illustrator or Corel Draw or any other vector drawing program. If it was done outside of EnRoute it will need to be imported as an AI file.


Then, after selecting the outside vector square only I created a base relief. This was done using the create relief tool that button looks like a loaf of bread. It was made 0.4" thick.


Then I imported a woodgrain bitmap. The one I used is the sandblasted woodgrain from my Texture Magic collection. When EnRoute opens the bitmaps, by default, they are as big as the plate. That means in this case it is far too small to be able to route decent woodgrain with the size bit ( 1/8" ) I will be using.  So this means it needs to be enlarged significantly. This 8.5" x 11" 300 DPI file could be enlarged to create believable woodgrain on a 48" x 96" sheet of material without difficulty.

I selected the woodgrain bitmap all by itself and then by grabbing the corner nodes stretched it out until the square vectors were inside one of he different grain boards.


Up close it looked like this...


Then after selecting both the relief and the bitmap I selected the apply bitmap menu. It looks like a mountain and sky. I applied a value of 0.2" in the table and selected add to relief, then hit enter. This means the black areas of the bitmap did nothing. The white raised 0.2" and the grays (depending on their value) did something in between. Just like magic the wood grain appears when you hit the render button (lightbulb).


Get rid of the wood grain bitmap for you won't need it any more... then render the file one last time to check things.  The relief should look like this now.

Now it gets a teeny bit more complicated. The secret is to do things in the right order - or else they may not turn out quite like we imagined. Select the border of the letter alone. Open the create relief menu... and then add relief box...  then type in a value of 0.7"  Create this flat relief.  The reason for the value is as follows...  the original relief was 0.4"  add on the 0.2" wood grain... and then add on 0.1" for this border.


Everything looks great at this point but if you were to tool path and route the file as it is now some funny things would happen. The reason is you have two different surfaces in the same space. So we need to merge things together before we go further. Deselect everything, then open the merge menu. This button looks like two mountains being pushed together. Select MERGE HIGHEST... then the base relief (outside square) it will turn blue. The red box is your plate and will not affect anything.


Then press the arrow key. Then select the second relief (in this case it is the letter outline. It will turn red. Then press the green check mark. That is how simple merging is but you are not quite done. Delete the outline of the letter and then check the render. If you did it right the background relief will now have the letter outline merged to it.


Now we are going to add to this relief. Select the base relief and the letter 'a' vector. Then open the create relief menu (it looks like a loaf of bread) I select the bevel tool, ADD to relief.  I put in a value of 0.1" to the base. This means the sides of the letter will be 0.1" tall before they angle to form a bevel. I also put in a value of 21 degrees for the slope of the top. I used a fixed height of 0.15" I know from experience this will look fine. Hit the enter key to make it happen.

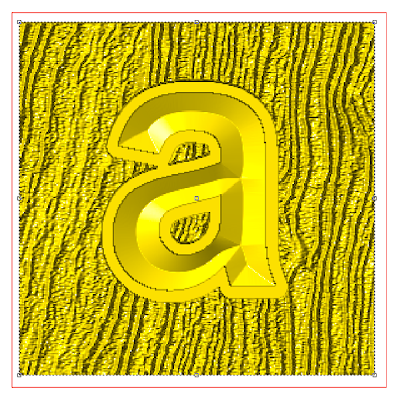

When you hit the lightbulb (render) button it should look like this. I'm happy with this but I want to add a little different texture to just the letter.
